Aluminium Cladding Profiles
Flashclad aluminium cladding is extruded and powder-coated for New Zealand homes, multi-level residential and commercial buildings. Every profile is designed around interlocking joints that manage water mechanically, with no reliance on sealants, foams or plastic back flashings. It won’t rust, rot or corrode, and it won’t oil-can or cup across the face of the board.
Use this guide to compare our cladding ranges, then explore each profile for technical drawings, colours and project galleries.
Dualbord VSeries – vertical cladding
Vertical profiles from V70 to V400 for sharp, deep shadow lines. Mix widths for a random layout, with woodgrain and metallic finishes available.
Dualbord – shiplap weatherboard
A powder-coated aluminium weatherboard with a deep recessed negative detail. Installed horizontally it gives a classic shiplap look; installed vertically it creates crisp, clean straight lines. Also suitable for soffit linings and internal feature walls.

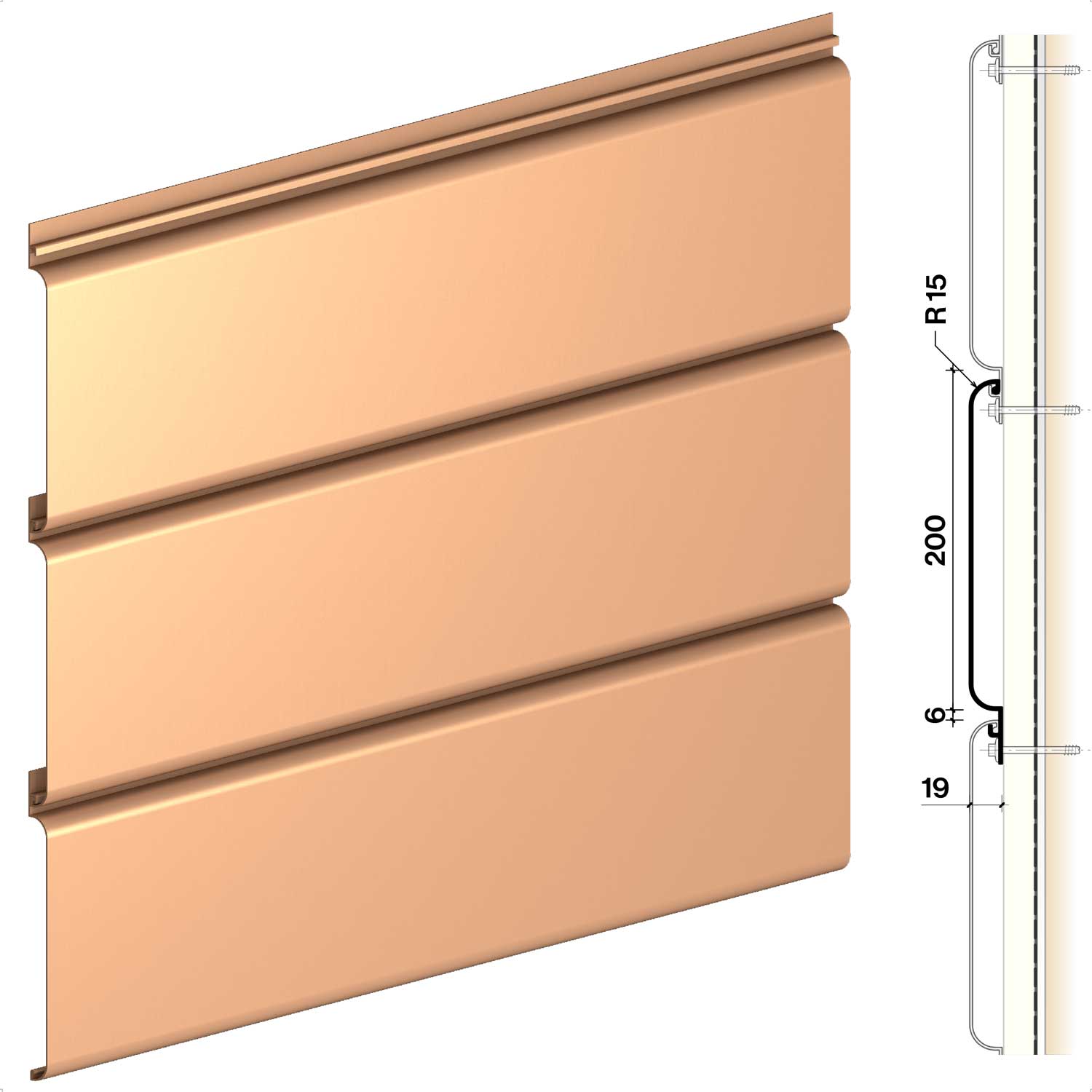

Dualbord C200 – value profile
Our most cost-effective cladding profile. A gently curved edge flows into the recessed joint, softening the shadow line and giving the façade a refined, textured look as the light changes.
Eurorib – standing seam
A premium extruded aluminium standing seam with a beautifully flat finish. Unlike steel tray systems, Eurorib won’t oil-can, distort or ripple.
Euroline – flat panel cladding
A calm, flat-panel appearance with a crisp 2mm V-joint. At 265mm wide (230mm cover), its broad boards create a clean, continuous surface. Installs horizontally or vertically.
Eurolap – lapped cladding
A subtle rhythm of shadow, with a negative detail that won’t trap dirt or hold water. Available in 65, 95 and 210 widths, installed horizontally or vertically – a low-maintenance alternative to re-oiling timber.
Neobord – fins and scallops
Built on the proven Eurobord platform, Neobord adds an integrated layer of architectural expression – box fins, fins and scallops – that extends beyond the face of the board for striking façade depth.
Bevelbord – traditional weatherboard
The timeless look of bevel-back timber weatherboard, without rot, warping, splitting or repainting.
Bevelbord R210 – rusticated weatherboard
Known as “the Wellington Board”, Bevelbord R210 brings the character of traditional villa weatherboard together with a modern edge. Installed horizontally it gives a classic rusticated look with a strong play of light and shadow, ideal for villa renovations and new builds alike. It can be powder-coated in rich, dark colours that are hard to achieve and maintain with timber.
